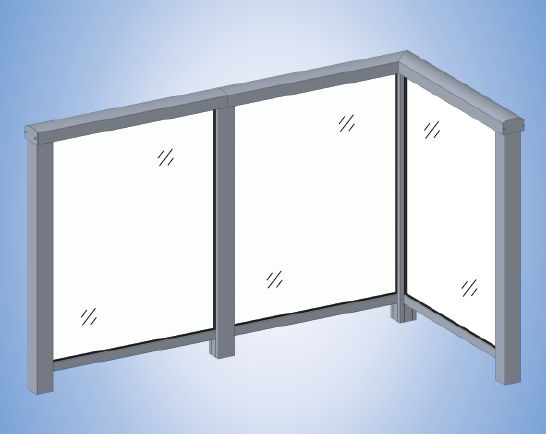

CS504 Semi Frameless Glazing System

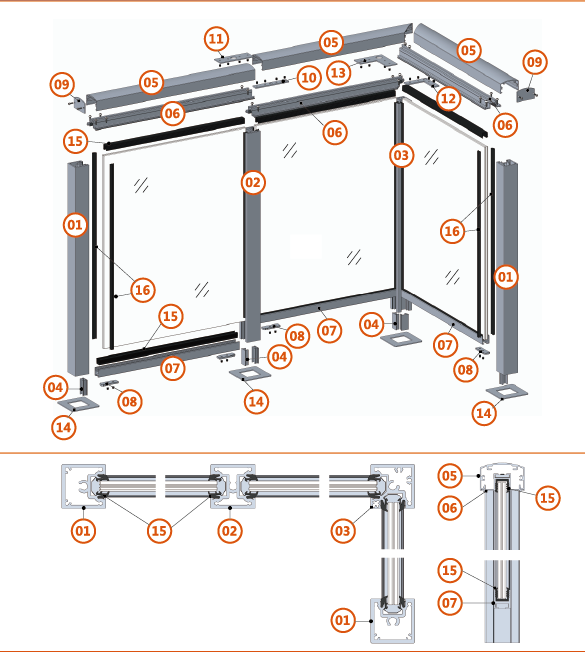

Stock Code Description Length Packing Finish Unit Quantity

Stock Code：1) M10-12-CS504-Sgl-T6 Description：Single Glazing Post, 50x50x4.0mm, 6061-T6 Length：6 M Packing：2 Ln/Pk Finish：Mill Unit：(Ln) 9999
Stock Code：2) M10-12-CS504-180dgr-T6 Description：180dgr Glazing Post, 50x50x4.0mm, 6061-T6 Length：6 M Packing：2 Ln/Pk Finish：Mill Unit：(Ln) 9999
Stock Code：3) M10-12-CS504-90dgr-T6 Description：90dgr Glazing Post, 50x50x4.0mm, 6061-T6 Length：6 M Packing：2 Ln/Pk Finish：Mill Unit：(Ln) 9999
Stock Code：4) M10-12-CS504-Infill-4 Description：Glazing Clip, infill, 25x14mm, 6063-T5 Length：4 M Packing：20 Ln/Pk Finish：Mill Unit：(Ln) 9999
Stock Code：5) M10-12-CS504-TR6540-6.5 Description：Top Rail, 65x40mm, 6063-T5 Length：6.5 M Packing：4 Ln/Pk Finish：Mill Unit：(Ln) 9999
Stock Code：6) M10-12-CS504-TGC-6.5 Description：Glazing Channel, 60.6x26.5mm, 6063-T5 Length：6.5 M Packing：4 Ln/Pk Finish：Mill Unit：(Ln) 9999
Stock Code：7) M10-12-CS504-BTM Description：Bottom Channel, 24.5x27.8mm, 6063-T5 Length：6 M Packing：4 Ln/Pk Finish：Mill Unit：(Ln) 9999
Stock Code：8) M10-12-CS504-BTM-Joint-T6 Description：Bottom Channel joint, 60x19mm, 6061-T6,Anodised Length： Packing：1000 Pcs/box Finish： Unit：(Pcs) 9999
Stock Code：9) M10-12-CS504-EndCap-pr Description：End cap,Pressed, 65x40mm, 1060 Length： Packing：1200 Pcs/box Finish：Mill Unit：(Pcs) 9999
Stock Code：M-Screw-P4.2x18 Description：Pan self tappers screws for end cap, ∮4.2x18,304 Length： Packing：100 Pcs/bag Finish： Unit：(Pcs) 9999
Stock Code：10) M10-12-CS-Joint-TGC Description：TGC50 Joint, 120x20x4mm, 1060 Length： Packing：50 Pcs/bag Finish：Mill Unit：(Pcs) 9999
Stock Code：11) M10-12-CS-Joint-TR Description：TR6540 Joint, 120x40x3mm, 1060 Length： Packing：50 Pcs/bag Finish：Mill Unit：(Pcs) 9999
Stock Code：12) M10-12-CS-90Joint-TGC Description：TGC50 90 Corner Joint, 80x20x4mm, 1060 Length： Packing：50 Pcs/bag Finish：Mill Unit：(Pcs) 9999
Stock Code：13) M10-12-CS-90Joint-TR Description：TR6540 90 Corner Joint, 100x40x3mm, 1060 Length： Packing：50 Pcs/bag Finish：Mill Unit：(Pcs) 9999
Stock Code：14) MCAP-BC-Sq51-pr-flat-100 Description：Base Cap:sq51x51, Flat Pressed, 1060 Length： Packing：300 Pcs/box Finish：Mill Unit：(Pcs) 9999
Stock Code：14) MCAP-BC-Sq51-pr Description：Base Cap:sq51x51, Pressed, 1060 Length： Packing：300 Pcs/box Finish：Mill Unit：(Pcs) 9999
Stock Code：15) M10-12-CS504-Rubber-U-12.38 Description：Rubber for 12mm /12.38mm glass, Pvc Length：2M Packing：50 Ln/Pk Finish：Black Unit：(Ln) 9999
Stock Code：15) M10-12-CS504-Rubber-U-13.38 Description：Rubber for 13.38mm glass, Pvc Length：2M Packing：50 Ln/Pk Finish：Black Unit：(Ln) 9999
Stock Code：16) M10-12-CS504-Rubber-7.2 Description：Rubber for 12.38mm /13.38mm glass, Pvc,Black Length： Packing：100 m/Roll Finish：Black Unit：(Roll) 9999
Stock Code：M10-12-CS504&PS-Packer Description：Rubber Packer for glazing post, Pvc Length： Packing：100 Pcs/bag Finish： Unit：(Pcs) 9999
Stock Code：M-Screw-P4.8x22 Description：Pan self tappers screws for glazing Post, ∮4.8x22, 304 Length： Packing： Finish： Unit：(Pcs) 9999
Stock Code：M-Bolt-M10x45 Description：Bolt for glazing post , M10x45, Iron galvanizing Length： Packing： Finish： Unit：(Pcs) 9999

All aluminium products are mill finish unless otherwise specified

Note: all assembly methods shown here are indicative only.

please have your structural engineer certify your particular project to ensure compliance to the relevant building codes and Australian standards.
