85mm Oval Louvre Adjustable Systems
Stock Code Description Length Packing Finish Unit Quantity
  • Stock Code：⑴ML-85A-SF50-sp-rd15  Description：Side punch frame   Length：6M  Packing：4Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑵ML-85A-Clip502.5-sp-rd15  Description：Clip502.5 punch frame   Length：6M  Packing：8Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑶ML-85A/85F-Clip-501.6  Description：1.6mm clip    Length：6M  Packing：8Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑷ML-85A/85F-TF75-6.5  Description：Top frame   Length：6.5M  Packing：2Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑸ML-85A/85F-BF75-6.5  Description：Bottom frame   Length：6.5M  Packing：2Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑹ML-85A-Clip-501.6-WA  Description：Clip with angle to suit : ML-85A/85F-TF75-6.5、ML-85A/85F-BF75-6.5   Length：6M  Packing：8Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑺ML-85A-Oval  Description：Oval85 louvre   Length：6M  Packing：7Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑺ML-85A-Oval-6.5  Description：Oval85 louvre   Length：6.5M  Packing：7Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑻ML-TRK-TOP-Sgl  Description：Top Hanging Track   Length：6.5M  Packing：4Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑼ML-TRK-BTM-Sgl-F50-6.5  Description：Sliding Track   Length：6.5M  Packing：4Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑽ML-85A-CTB-5.4  Description：Control T-bar    Length：5.4M  Packing：10Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑾ML-85A-MidF68-6.5  Description：Middle joint for frame   Length：6.5m  Packing：2Ln/Pk  Finish：Mill  Unit：(Ln)  9999
  • Stock Code：⑿ML-85A-Cap-T  Description：End cap with T-bar slot   Length：  Packing：10 set/bag  Finish：Mill  Unit：(set)  9999
  • Stock Code：⒀ML-85A-Cap  Description：End cap   Length：  Packing：10 set/bag  Finish：Mill  Unit：(set)  9999
  • Stock Code：⒁ML-85A-Cap-T-Fix  Description：Fix end cap with T-bar slot   Length：  Packing：10 set/bag  Finish：Mill  Unit：(set)  9999
  • Stock Code：⒂ML-85A-Cap-Fix  Description：Fix end cap   Length：  Packing：10 set/bag  Finish：Mill  Unit：(set)  9999
  • Stock Code：⒃M-Screw-P4.2x30  Description：Screw for louvre frame ∅4.2x30   Length：  Packing：100 Pcs/bag  Finish：  Unit：(Pcs)  9999
  • Stock Code：⒄M-Screw-P3.5x18  Description：Screw for Control bar ∅3.5x18   Length：  Packing：100 Pcs/bag  Finish：  Unit：(Pcs)  9999

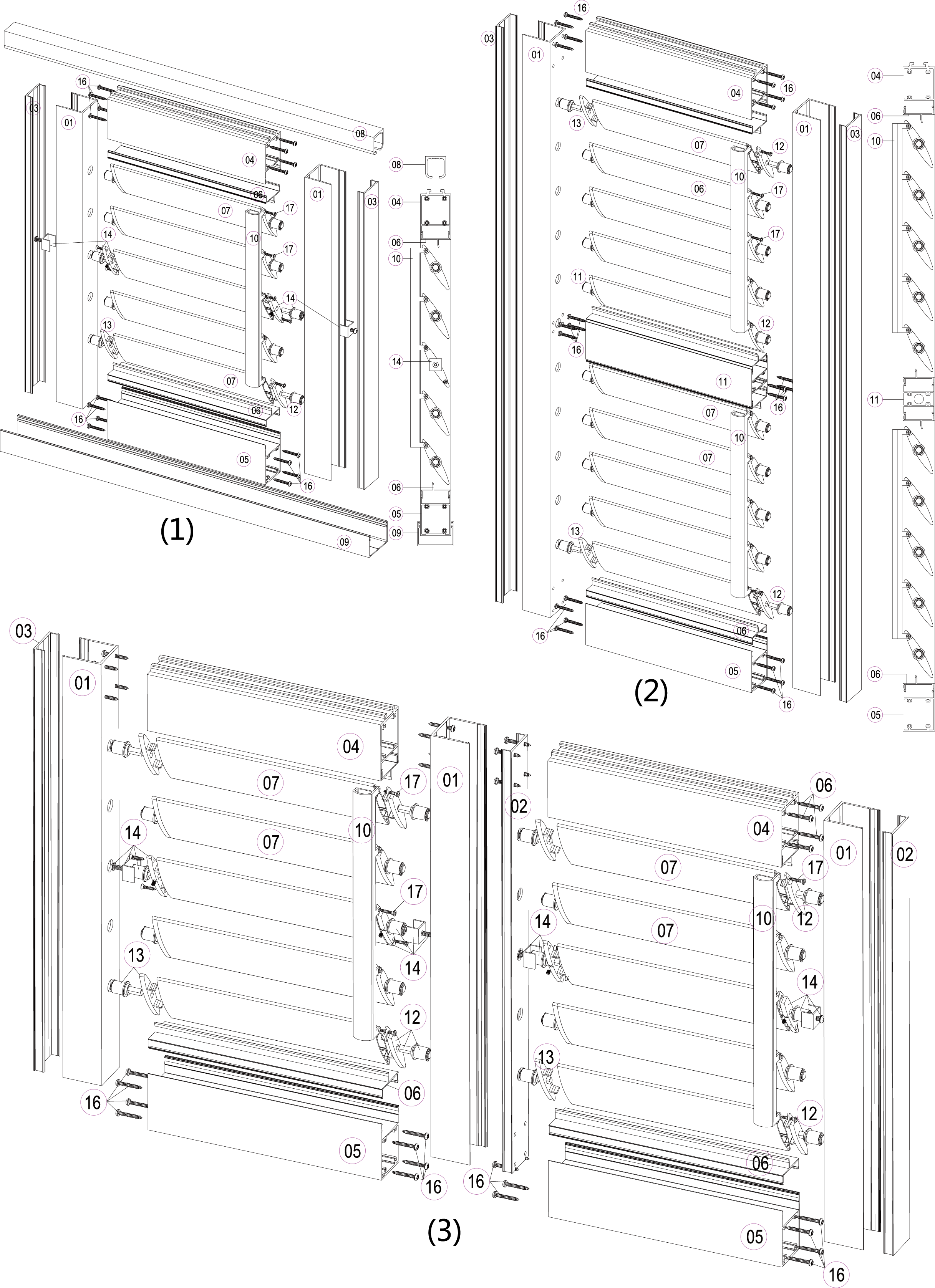

Note: all assembly methods shown here are indicative only.
please have your structural engineer certify your particular project to ensure compliance to the relevant building  codes and Australian standards.


85mm Oval Louvre Adjustable Systems

*Please note - For every metre , you will need 13 blades.

Recommendation: Height approximately 1500 mm

                           width approximately 1200 mm
